| Reference Standard | GB/T 3667.1 (IEC 60252-1) |
|---|---|
| Rated (AC) Voltage - 50/60Hz | 250 / 300 / 350 / 400 / 450 VAC |
| Class of Operation | B |
| Life Expectancy | 10,000 h |
| Capacitance Tolerance | ±5% (J) |
| Class of Safety Protection | S0 |
| Climatic Category | 40 / 85 / 21 |
| Capacitance Range | CQC 0.5uF ~ 50uF / VDE 0.5uF ~ 30uF / UL 0.5uF ~ 50uF |
| Voltage Proof | Between Terminals 2Uʀ, 2s Between Terminal and Enclosure Uʀ x 200% + 1000Vac, 60sec |
| Maximum Permissible Voltage | 1.1Uɴ |
| Maximum Permissible Current | 1.3Iɴ |
| Insulation Resistance | ≧ 3,000s (20)°C, 100V, 1min) |
| Dissipation Factor | 0.2% Max, at 1KHz and 25°C |

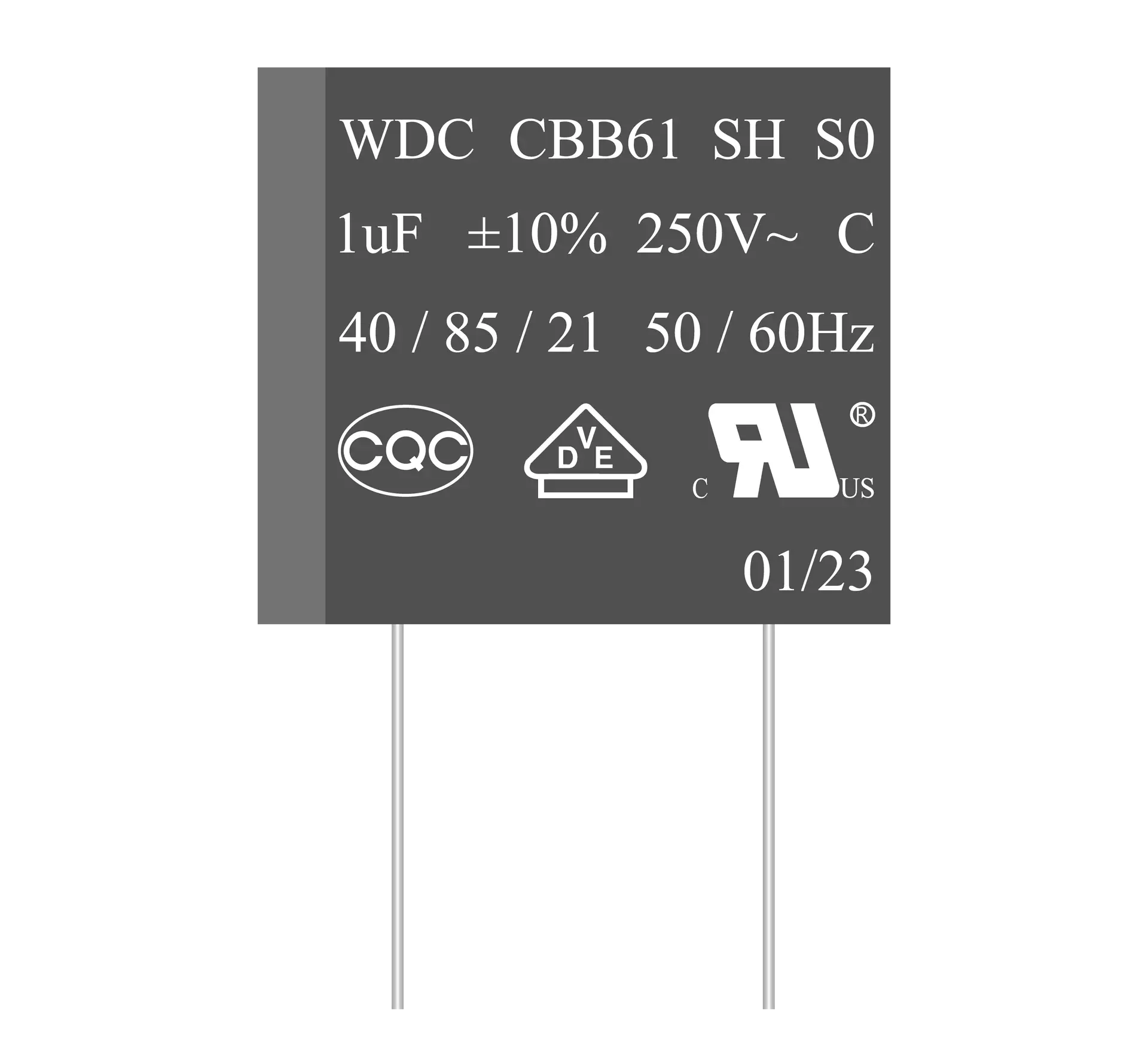

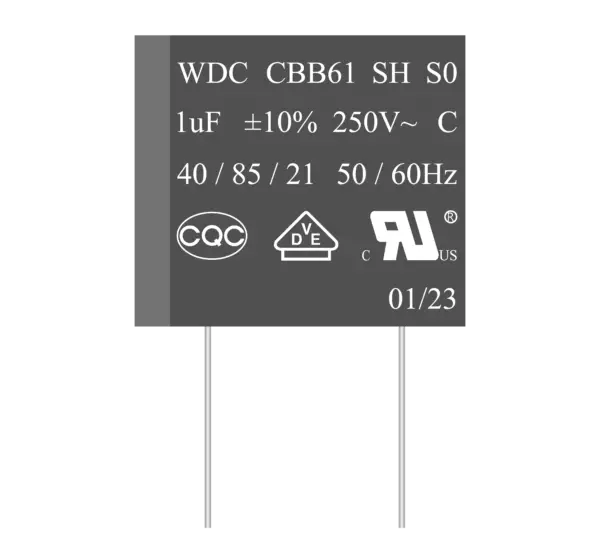

MCB
♦特點 Feature
自愈性，性能穩定，可靠性極佳
Self-healing property. Extremely stable performance and reliability.
♦主要應用 Typical Applications
廣泛應用於交流電的啟動和運行，50Hz/ 60Hz頻率功率下的單相電動機
Widely applied to starting and running of AC. Single-phase motors at 50Hz/60Hz frequency power.
相關商品
-

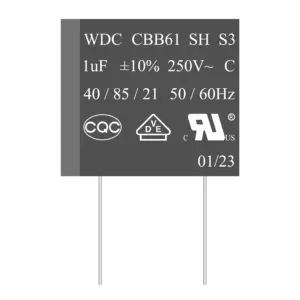

MS3
