| Reference Standard | GB/T 7332 (IEC 60384-2) |
|---|---|
| Climatic Category | 40 / 105 / 21 |
| Rated Temperature | 85°C |
| Operating Temperature Range | -40°C ~ +105°C (+85°C to +105°C: Decreasing factor 1.25% per °C for Uʀ) |
| Capacitance Range | 0.0001uF ~ 1uF |
| Rated (DC) Voltage | 63 / 100 / 250 / 400 VDC |
| Capacitance Tolerance | ±5% (J) 、 ±10% (K) |
| Voltage Proof | 1.6Uʀ, 2s |
| Dissipation Factor | ≦0.1% (25°C, 1kHz) |
| Insulation Resistance | Cʀ ≦ 0.33uF, IR ≧ 3,750MΩ; Cʀ > 0.33uF, IR ≧ 1,250s (20°C, 100V, 1min) Uʀ ≦ 100V |

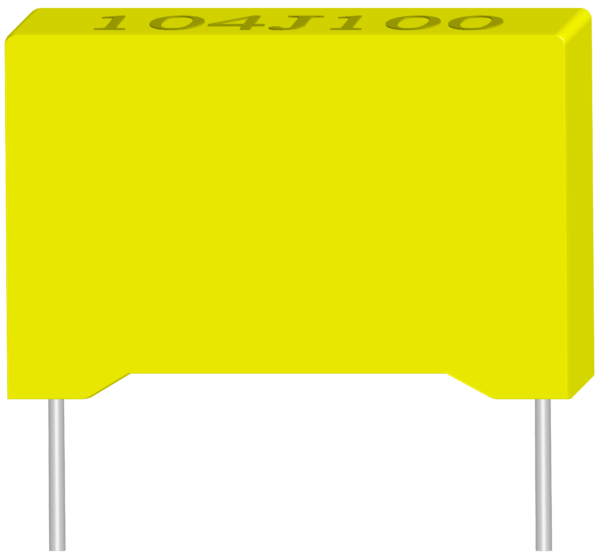

MEB
♦特點 Feature
金屬化聚乙烯膜，疊片式結構塑膠外殼(UL94V-0)，環氧樹脂填充，高脈衝能力
Metallized polyester film, Stacked construction. Plastic case (UL94V-0), Epoxy resin sealing High dV/dt ability.
