| Reference Standard | GB/T 10190 (IEC 60384-16) |
|---|---|
| Climatic Category | 40/105/21 |
| Rated Temperature | 85°C |
| Operating Temperature Range | -40°C ~ +105°C (+85°C to +105°C: Decreasing factor 1.25% per °C for Uʀ) |
| Capacitance Range | 0.01uF ~ 10uF |
| Rated Voltage | 100 / 250 / 400 / 500 / 630 / 1000 VDC |
| Capacitance Tolerance | ±2% (G) 、 ±3% (I) 、 ±5% (J) 、 ±10% (K) 、 ±20% (M) |
| Voltage Proof | 1.6Uʀ, 5s (DC) |
| Dissipation Factor | ≦0.1% (25°C, 1kHz) |
| Insulation Resistance | Cʀ ≦ 0.33uF, IR ≧ 15,000MΩ; Cʀ > 0.33uF, IR ≧ 5,000s (20°C, 100V, 1min) Uʀ > 100V |

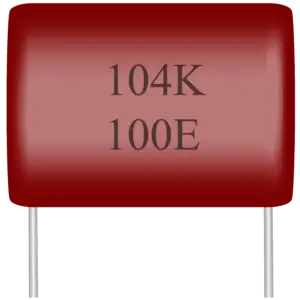

MPB
♦特點 Feature
金屬話聚丙烯薄膜，高頻損耗小，內部升溫小，塑料外殼(UL94V-0)，阻燃環氧填充
Metallized Polypropylene Film. Loss at high frequency. Small inherent temperature rise. Plastic case (UL94V-0), Epoxy resin sealing.
