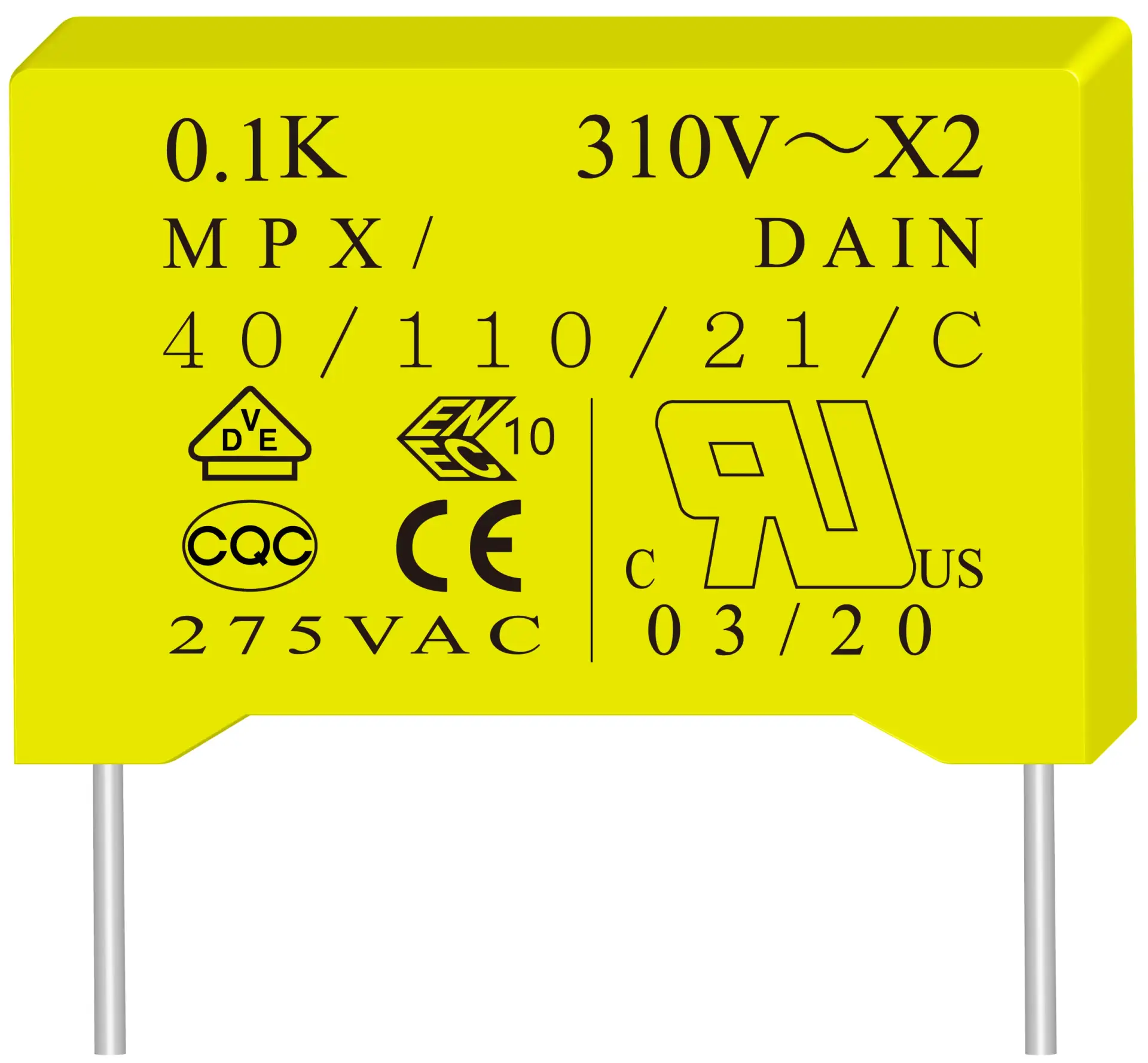

MPX X2

♦特點 Feature

類別X2等級，對主動或被動的易燃性的可靠性高，自愈性強，電壓強度高，衰滅良好，阻抗低，濾波抑制，干擾性強，塑殼符合UL94V-0防火等級

Class X2,Particularly high reliability against active and passive flammability. Excellent self-healing as well as high voltage strength. High degree of filter interference suppression due to good attenuation and low ESR. Plastic case (UL94V-0).

♦主要應用 Typical Applications

適用於高頻，直流，交流，偶合，跨接脈衝電路中，適用於即使電容器失效也不會導致電擊危險的情況

Widely used in high frequency, DC, AC and pulse circuits. Suitable for use in situations where failure of capacitor would not lead to danger of electric shock.

Description

規格 Specifications
氣候及阻燃等級	Climatic and Passive Flammability	40/110/21/B or C
工作溫度範園	Operation Temperature Range	-40°C ~ +110°C
額定電壓	Rated Voltage	250 / 275 / 300 / 310VAC at 50/60Hz
電容量範圍	Capacitance Range	0.001uF~2.2uF
電容量偏差	Capacitance Tolerance	±5%(J) 、 ±10%(K) 、 ±20%(М)
絕緣電阻	Insulation Resistance	Cʀ ≦ 0.33uF, IR ≧ 15000MΩ; Cʀ > 0.33uF, IR ≧ 5000 MΩ / CAP(uF)
損耗角正切	Dissipation Factor	0.1% Max, at 1KHz and 20°C

安規認證 Safety Approval
Mar. 21,2014 E147776	UL CUL		USA CANADA	UL 60384-14, CSA E60384-14/-1/ IEC 60384-14/-1/ FOWX2/8 UL1414/UL1283 UL94-0
Dec. 06,2016 40018798	VDE		GERMANY	DIN EN 60384-14(VDE 0565-1-1) IEC 60384-14
Dec. 06,2016 40018798	ENEC		EUROPE	DIN EN 60384-14(VDE 0565-1-1) IEC 60384-14
Aug. 30,2016 CQC03001007500	CQC		CHINA	GB/T 6346.14-2015
Dec. 01,1996	CE		EUROPE	EN132400：1994 IEC 60384-14 73/23/EEC/93/68/EEC
