| Reference Standard | GB/T 7332 (IEC 60384-2) |
|---|---|
| Climatic Category | 40 / 105 / 21 |
| Rated Temperature | 85°C |
| Operating Temperature Range | -40°C ~ +105°C (+85°C to +105°C: Decreasing factor 1.25% per °C for Uʀ) |
| Capacitance Range | 0.001uF ~ 1uF |
| Rated (DC) Voltage | 63 / 100 / 250 VDC |
| Capacitance Tolerance | ±5% (J) 、 ±10% (K) 、 ±20% (M) |
| Voltage Proof | 1.6Uʀ, 5s |
| Dissipation Factor | ≦0.1% (20°C, 1kHz) |
| Insulation Resistance | Cʀ ≦ 0.33uF, IR ≧ 7,500MΩ; Cʀ > 0.33uF, IR ≧ 2,500s (20°C, 100V, 1min) Uʀ > 100V |

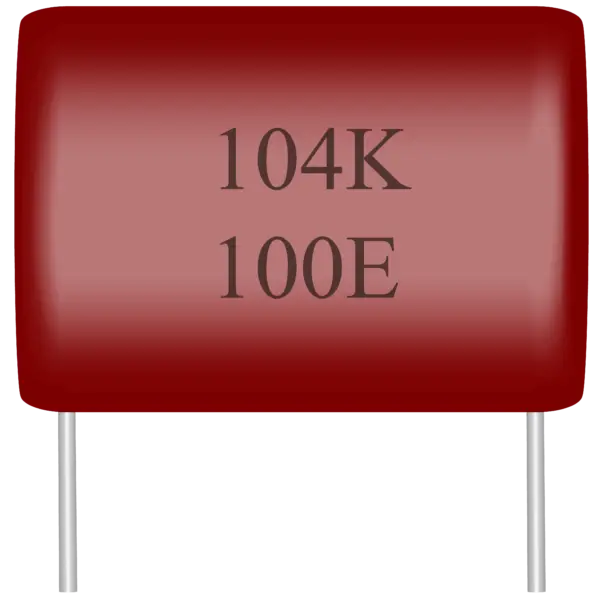

MEM
♦特點 Feature
金屬化聚酯薄膜，無感捲繞結構，阻燃性環氧樹脂包封，抗脈衝能力強
Metallized polyester film, non-inductive wound construction. Flame retardant epoxy resin coating. High dV/dt ability.
