Polypropylene Film Capacitor | Consumer Electronics
PPN

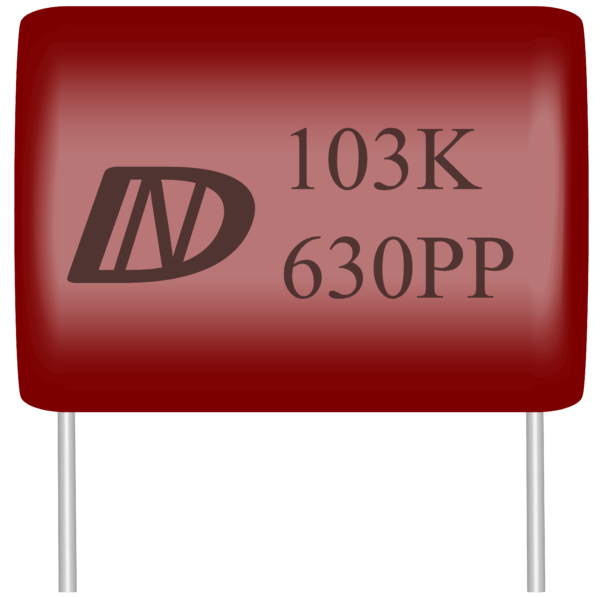

Polypropylene Film Capacitor
FEATURES
Features
Film/foil, non-inductive wound type
Low loss at high frequency
Small inherent temperature rise
Flame retardant epoxy resin coating (UL94V-0)
APPLICATIONS
Applications
Widely used in high frequency, DC, AC and pulse circuits
SPECIFICATIONS
Specifications
| Reference Standard | GB/T 10188 (IEC 60384-13) |
| Climatic Category | 40 / 105 / 21 |
| Rated Temperature | 85°C |
| Temperature Range | -40°C ~ +105°C (+85°C to +105°C: Decreasing factor 1.25% per °C for UR) |
| Capacitance Range | 0.001μF ~ 0.1μF |
| Rated DC Voltage | 100 / 250 / 400 / 630 VDC |
| Capacitance Tolerance | ±5%(J)、±10%(K) |
| Voltage Proof | 2UR, 5s |
| Dissipation Factor | ≦0.1% (25°C, 1kHz) |
| Insulation Resistance | UR>100V CR≦0.1μF, IR≧50,000MΩ；CR>0.1μF, IR≧5,000s (20°C, 100V, 1min) |
