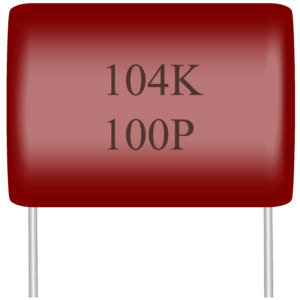

MPC

♦特點 Feature
金屬化聚丙烯膜介質,無感捲繞結構,高頻損耗小,內部溫升小,塑料外殼 (UL94V-0) ,阻燃環氧填充
Metallized polypropylene film. Non-inductive wound construction. Low loss at high frequency. Small inherent temperature rise. Plastic case (UL94V-0), Epoxy resin sealing.



♦主要應用 Typical Applications
廣泛用於高頻、直流 、交流和脈衝電路中,適合應用於高頻和高脈衝電路情況
Widely used in high frequency, DC, AC and pulse circuits. Suitable for the situation where applies high frequency and high current pulse.
Reference StandardGB/T 10190 (IEC 60384-16)
Climatic Category40/105/21
Rated Temperature85°C
Operating Temperature Range-40°C ~ +105°C
(+85°C to +105°C: Decreasing factor 1.25% per °C for Uʀ)
Capacitance Range0.001uF ~ 15uF
Rated (DC) Voltage160 / 250 / 400 / 630 / 1000 / 1600 / 2000 VDC
Maximum continuous AC voltage90 / 160 / 220 / 250 / 400 / 600 / 700 VAC
Capacitance Tolerance±5% (J) 、 ±10% (K)
Voltage Proof1.6Uʀ, 5s (DC)
Dissipation Factor≦0.1% (25°C, 1kHz)
Insulation ResistanceCʀ ≦ 0.33uF, IR ≧ 25,000MΩ;
Cʀ > 0.33uF, IR ≧ 7,500s (20°C, 100V, 1min)
Uʀ > 100V
