| Climatic Category | 40 / 85 / 56 |
|---|---|
| Maximum Permissible Case Temperature (T case) | -40°C ~ +105°C +85°C to +105°C: Decreasing factor 1.35% per °C for Uɴ 85°C |
| Capacitance Range | 1uF ~ 140uF |
| Continuous DC Voltage (Uɴᴅᴄ) | 500 / 600 / 800 / 900 / 1000 / 1100 / 1200 VDC |
| Capacitance Tolerance | ±5% (J) 、 ±10% (K) |
| Withstanding Voltage Between Terminals | 1.5 x Uɴᴅᴄ for 10s, cut off current 10mA |
| Insulation Resistance (IR x Cɴ) | ≧10,000s (25°C, 100Vdc, 60 seconds) |
| Surge Voltage | 1.5 * Vɴᴅᴄ for maximum 10 times in lifetime at T = 25°C ±5°C |
| Over Voltage | 1.10 * Uɴ for 30% of load time, once per day 1.15 * Uɴ for maximum 30 minutes, once per day 1.20 * Uɴ for maximum 5 minutes, once per day 1.30 * Uɴ for maximum 1 minutes, once per day |
| Self Inductance (Ls) | <1nH per mm of lead spacing |
| Maximum peak current ↑ (A) | ↑ = C x dV/dt |

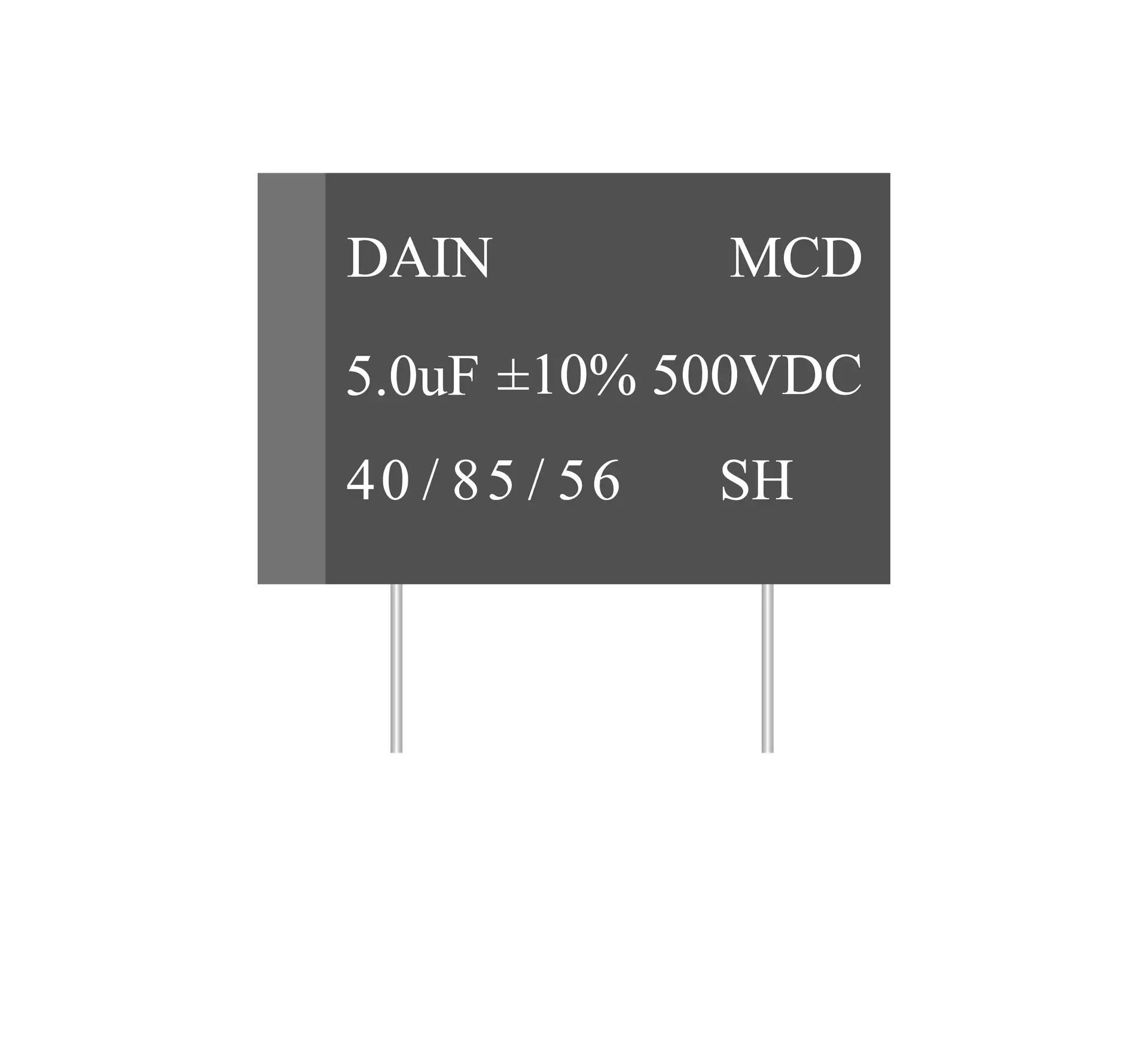

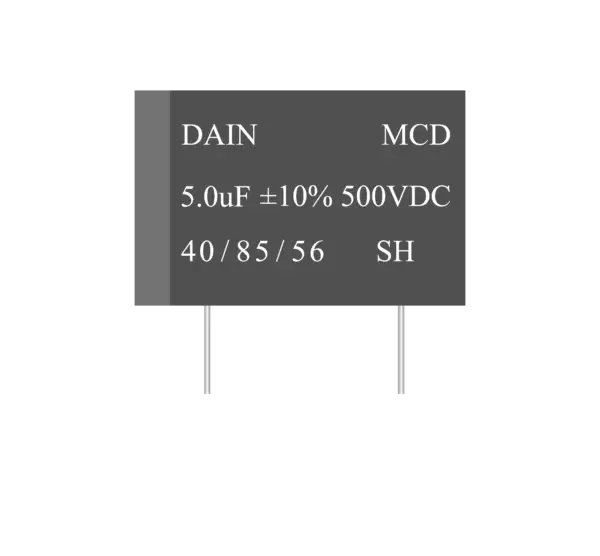

MCD
♦特點 Feature
金屬化聚丙烯膜結構 ，採用矩形塑料盒型設計塑料外殼封裝(UL94V-0)，環氧樹脂密封使用2或4根鍍錫引線，直流母線支撐電容

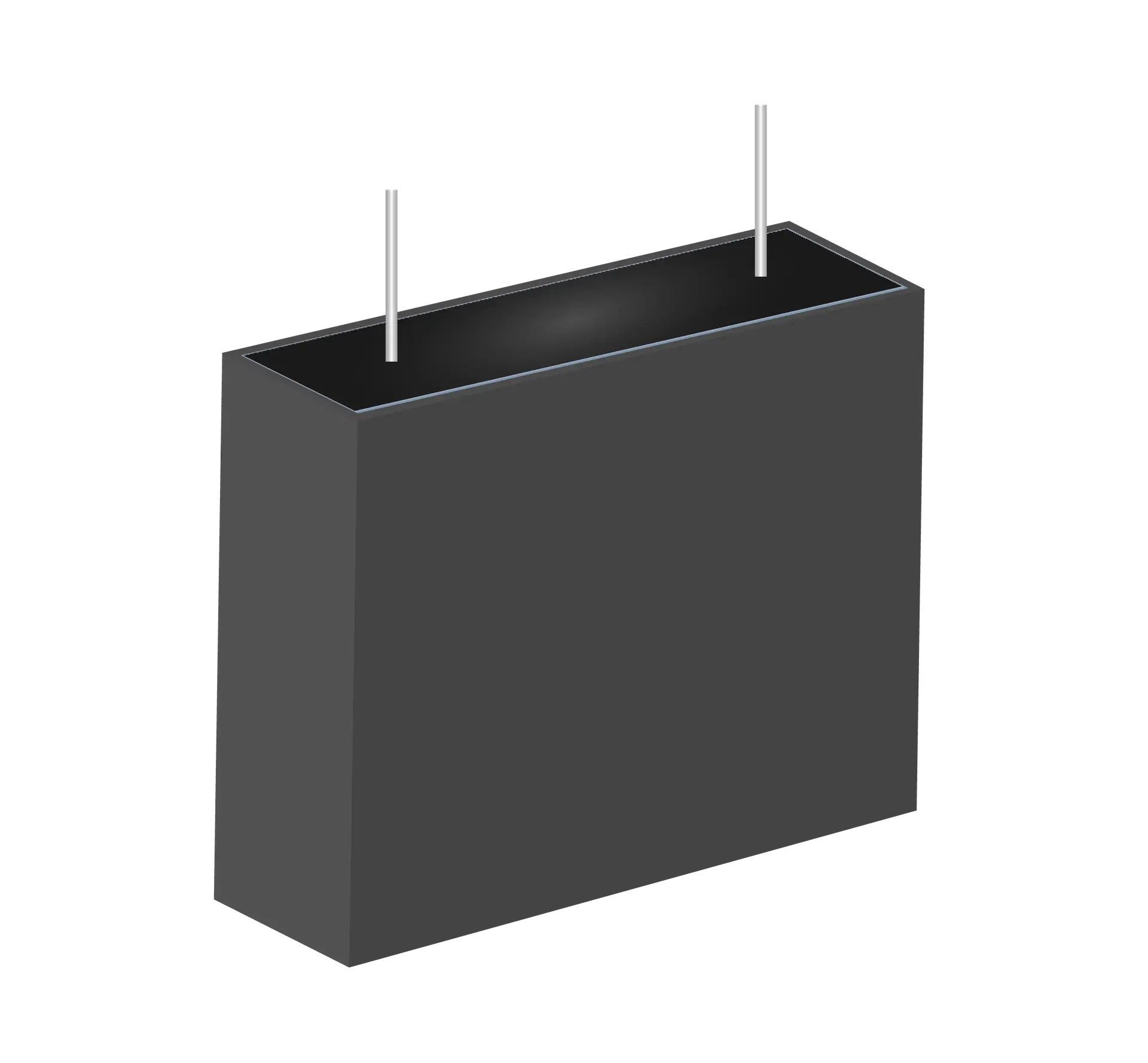

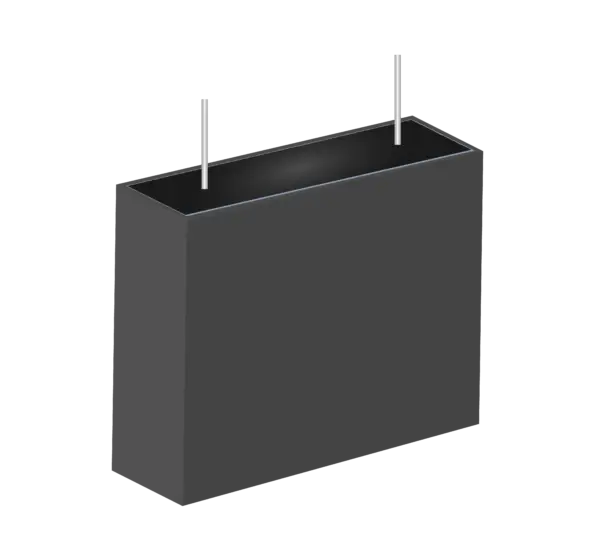

Metallized polypropylene film membrane structure with a rectangular, plastic box-type design, Plastic shell package (UL94v-0), Epoxy resin sealing and uses 2 or 4 tinned wires. DC-Link.
