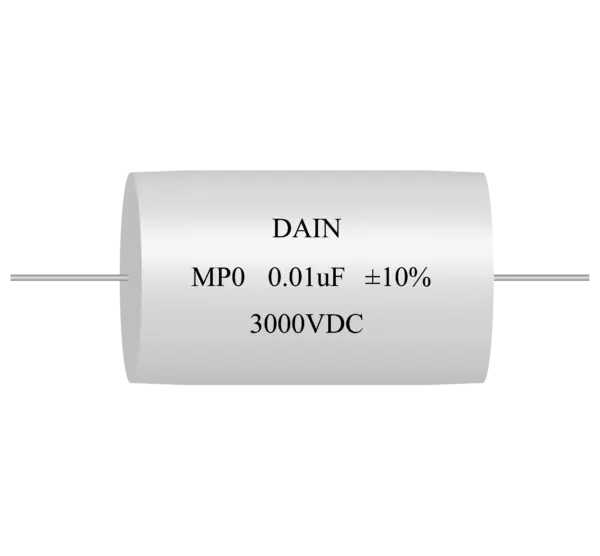

MP0

♦特點 Feature
耐高壓,高電流及高脈街電流,高脈衝電流及RMS電流吸收能力(dv / dt),低損失角,低算效串聯電阻,自愈特性良好,膠帶包裹,UL94V-0 阻燃環氧樹脂封裝,IGBT吸收電容
High voltage, high current and high pulse applications. High peak & RMS current capability. Low DF, Low ESR, Self-healing. UL 510 polyester tape wrapping, UL 94 V-0 resin end fill (flame retardant execution) UL510 PET.



♦主要應用 Typical Applications
在工業半尋體電源控制電路中作為吸收保護電容器(IGBT吸收電容),工業加熱爐及高電流高突波電路中應用
Snubber capacitor for energy conversion and control in power semiconductor circuits, protection circuits in SMPS, induction heaters, high voltage, high current and high pulse applications.
Reference StandardGB/T 17702 (IEC 61071)
Climatic Category40 / 105 / 56
Maximum Permissible Case Temperature (T case)-40°C ~ +105°C
+85°C to +105°C: Decreasing factor 2.5% per °C for Uɴ
Capacitance Range0.01uF ~ 4.7uF
Rated Voltage600 / 700 / 850 / 1000 / 1200 / 1600 / 2000 / 3000 VDC
Capacitance Tolerance±5% (J) 、 ±10% (K)
Voltage Proof (Between Terminals Vᴛᴛ)1.5 x Uɴᴅᴄ for 10s
Dissipation FactorCɴ≦1.0uF, DF 0.05% max
Cɴ>1.0uF, DF 0.06% max
1kHz, 1Vrms Max. at 25°C
Insulation ResistanceCɴ≦0.33uF, IR≧ 100,000MΩ;
Cɴ>0.33uF, IR x Cɴ ≧ 30,000s
25°C, 100Vdc, 60 seconds
