| Reference Standard | GB/T 17702 (IEC 61071) |
|---|---|
| Climatic Category | 40 / 105 / 56 |
| Maximum Permissible Case Temperature (T case) | -40°C ~ +105°C +85°C to +105°C: Decreasing factor 2.5% per °C for Uɴ |
| Capacitance Range | 0.01uF ~ 4.7uF |
| Rated Voltage | 600 / 700 / 850 / 1000 / 1200 / 1600 / 2000 / 3000 VDC |
| Capacitance Tolerance | ±5% (J) 、 ±10% (K) |
| Voltage Proof (Between Terminals Vᴛᴛ) | 1.5 x Uɴᴅᴄ for 10s |
| Dissipation Factor | Cɴ≦1.0uF, DF 0.05% max Cɴ>1.0uF, DF 0.06% max 1kHz, 1Vrms Max. at 25°C |
| Insulation Resistance | Cɴ≦0.33uF, IR≧ 100,000MΩ; Cɴ>0.33uF, IR x Cɴ ≧ 30,000s 25°C, 100Vdc, 60 seconds |

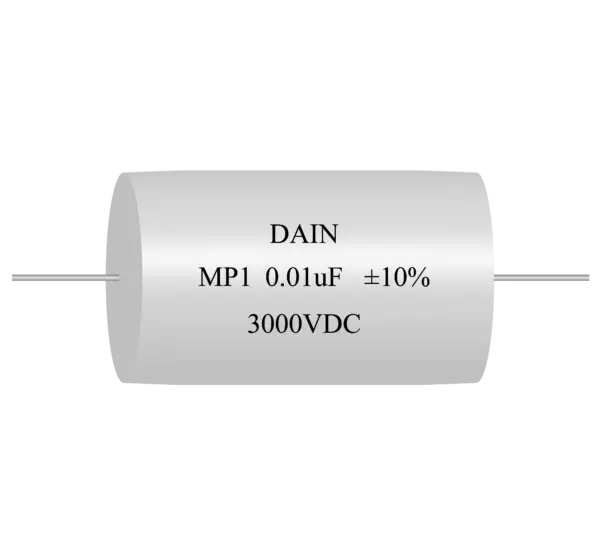

MP1
♦特點 Feature
耐高壓，高電流及高脈街電流，高脈衝電流及RMS電流吸收能力(dv/ dt)低損失角，低宰效串聯電阻，自愈特性良好，膠帶包裹，UL94V-0阻燃環氧樹脂封裝，IGBT吸收電容
High voltage, high current and high pulse applications Highpeak &RMS current capability. Low DE, Low ESR, Self healing. LU510 polyester tape wrapping ,UL 94 V-0 resin end fill (flame retardant execution) UL510 PET.
IGBT.
